Coated steel bracket for square Air-Row F-Series destratification fans.
Includes:
(1) Steel-coated bracket for square Air-Row F-Series destratification fans
Description
The Air-Row Tilt Bracket is an easily mountable product that is designed to help direct airflow to a targeted area inside a facility. This Tilt Bracket gives 22° angle options for any specific degree of angle needed to target stale air circulation or difficult to reach areas. The Air-Row Tilt Bracket was created for all current open ceiling applications and was designed to be adjusted for ceiling or wall mounting capabilities.
SPECIFICATIONS
- Precision lasered and formed .060 steel
- Powder coat finish (white coating is standard)
- Durable and light weight
- Seven 22° tilt options
- Two spin knobs for bracket stabilization
- Mounting hole dimension is 1/2 inch for wall mounting or eyehook connection
TECHNICAL SPECIFICATIONS

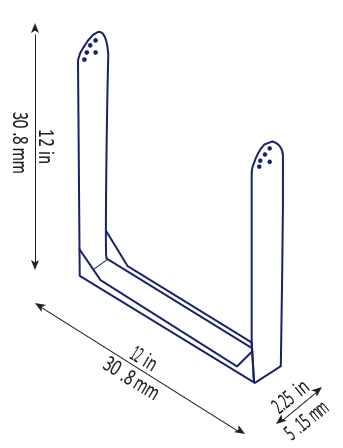

| DIMENSIONS | 12” X 2” X 12” |
| WEIGHT | 1.50 LBS |
| MATERIAL | COATED STEEL |
ATTRIBUTES
Hardware included for mounting backet to fan (ceiling or wall mounting hardware is not included and shall be supplied by the installer):
- Installation Instructions
WARRANTY
Full 3-year parts and workmanship warranty from date of purchase
