Smart energy management has never been easier than with the EnviroStat controller for Air-Row destratification fan applications.
FEATURES
- Touch screen interface
- Conforms to ASHRAE specifications for Green
- Building Standards
- Wired BACnet IP and Modbus
- Humidity Monitoring
BENEFITS
- Control multiple fans in multiple zones
- Set operation schedules so fans only run when they are needed
- Manage access to controls
- Optimize operation based upon humidity and/or temperature
- Single point connection to BMS system
Shipments are made using United Parcel Service (UPS).
All items are available for a return if you are not satisfied with your order. Please contact us for more information.
Shipping cost can be calculated within your shopping cart.
For additional shipping and return details, click here.
No reviews currently exist for this item.
Your product review has been submitted for review.
Product Specifications
Power Supply Input
Voltage Range: 24VAC/DC; ±15%; Class 2
Typical Power Consumption: 6VA; all external loads excluded
Maximum Power Consumption: 8VA; external 24VAC loads excluded
Frequency Range: 50 to 60Hz
Overcurrent Protection: External fuse required
Fuse Type: Up to 4A depending on output current consumption
Device power (Rc and Rh) and all other loads on the ECY-STAT should not exceed 4A total consumption.
Wired Communications
Ethernet Connection Speed: 10/100 Mbps
Addressing: IPv4 or Hostname
BACnet Profile: BACnet Building Controller (BBC), AMEV AS-A and AS-B
BACnet Listing: BTL, WSP B-BC (pending)
BACnet Interconnectivity: BBMD forwarding capabilities
BACnet Transport Layer: IP
Web Server Protocol: HTML5
Web Server Application Interface: REST API
Wireless Communications
Bluetooth Version: 4.2
Bluetooth Frequency: 2402 – 2480 MHz
Wi-Fi Communication Protocol: IEEE 802.11b/g/n
Wi-Fi Connection Types: Hotspot (default) and Client
Temperature Sensor
Range: 0°C to 50°C (32°F to 122°F)
Accuracy: Sensing component; ±0.20°C (±0.36°F)
Resolution: 0.10°C (0.18°F)
Humidity Sensor
Accuracy: <±3%: RH 0% to 70%
Resolution: 1%
Hardware
Processor: Sitara ARM processor with 3D acceleration
CPU Speed: 600MHz
Memory: 4GB Non-volatile Flash (applications & storage) 512MB RAM
Real Time Clock (RTC): Real Time Clock with rechargeable battery - Supports SNTP network time synchronization
RTC Battery: 20 hours charge time, 20 days discharge time - Up to 500 charge / discharge cycles
Cryptographic Module: FIPS 140-2 Level 1 Compliant
Ethernet: 1 × RJ-45 Ethernet port
Display Characteristics
Display Type: Full color, IPS, backlit, capacitive LCD touchscreen
Display Resolution: High definition (320 × 480)
Effective Viewing Area: (W x H) 48.96 x 73.44 mm (1.93 × 2.89”)
Languages: English, French, Spanish, Italian, German, Danish, Dutch, Polish, and Portuguese
Mechanical

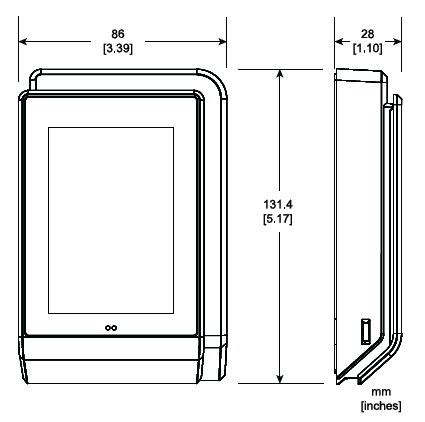

Dimensions: (H × W × D) 131.4 × 86.0× 28.0 mm (5.17 × 3.39 × 1.10”)
Shipping Weight: 0.55lbs (0.26 kg)
Enclosure Material: ABS
All materials and manufacturing processes comply with the RoHS directive and are marked according to the Waste Electrical and Electronic Equipment (WEEE) directive
Enclosure Rating: Plastic housing, UL94-V0
Installation: Wall mounting through included mounting holes
Environmental
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 50°C (-4°F to 122°F)
Relative Humidity: 0 to 90% Non-condensing
Ingress Protection Rating: IP20 (IEC 60549)
Standards and Regulations (pending)
CE Emission: EN61000-6-3: 2007+A1:2011
CE Immunity: EN61000-6-1: 2007
CE Radio: EN 300 328 V2.1.1 November 2016
FCC: Compliance with FCC rules part 15, subpart B, class B
UL Listed (CDN & US): UL916 Energy management equipment
